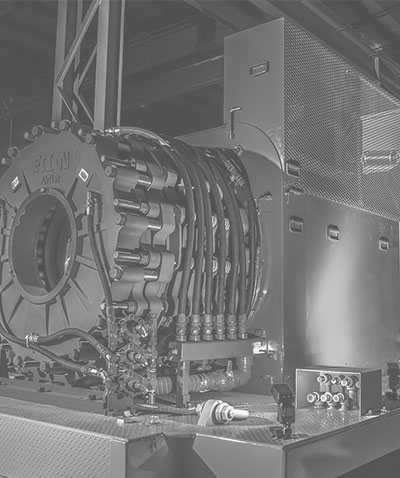

TSM designs, engineers and manufactures drawworks to suit industry requirements. We offer multiple arrangements, configurations and brake systems, and lead the way with innovative practices that keep the size and weight minimal while maintaining total quality standards.

AC

TSM AC drawworks provide optimum performance with less weight and lower maintenance.

SKUHP RangePower TypeSingle Line Pull (LBS.)Typical Mast Rating (LBS.)
TSM600A600AC45,000300,000
TSM750A750 - 850AC54,500440,000
TSM1000A1,000 - 1,200AC65,000500,000
TSM1500A1,500AC80,000750,000
TSM2000A2,000AC107,0001,000,000
TSM3000A3,000AC135,0001,500,000
TSM3600A3,600AC152,0001,600,000

DC

TSM DC drawworks offer a conventional solution that meets and exceeds industry standards.

SKUHP RangePower TypeSingle Line Pull (LBS.)Typical Mast Rating (LBS.)
TSM750D750 - 850DC54,500440,000
TSM1000D1000 - 1200DC65,000500,000

Mechanical

TSM Mechanical drawworks are lightweight, easy-to-maintain, and reliable.

SKUHP RangePower TypeSingle Line Pull (LBS.)Typical Mast Rating (LBS.)
TSM400M400 - 500Mechanical37,125250,000
TSM600M600Mechanical45,000300,000
TSM750M750 - 850Mechanical54,500440,000
TSM1000M1,000 - 1,200Mechanical65,000500,000
